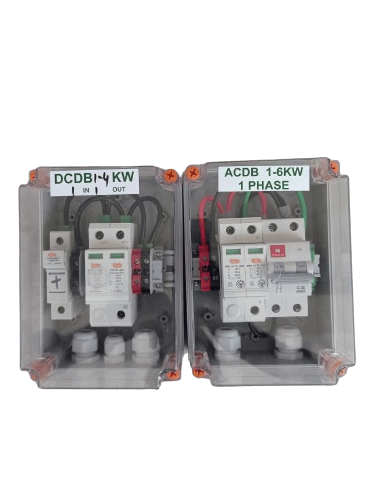

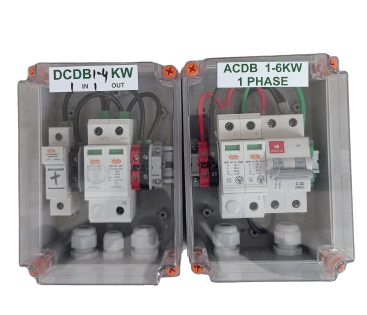

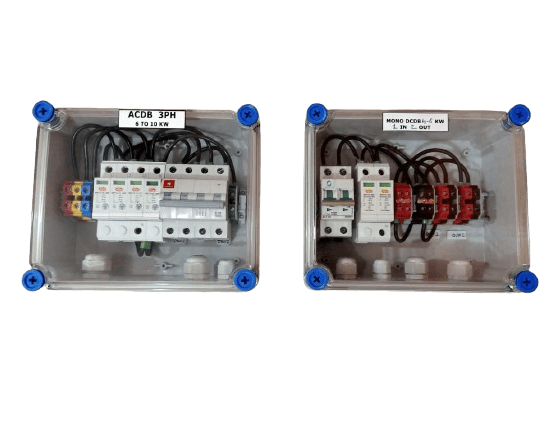

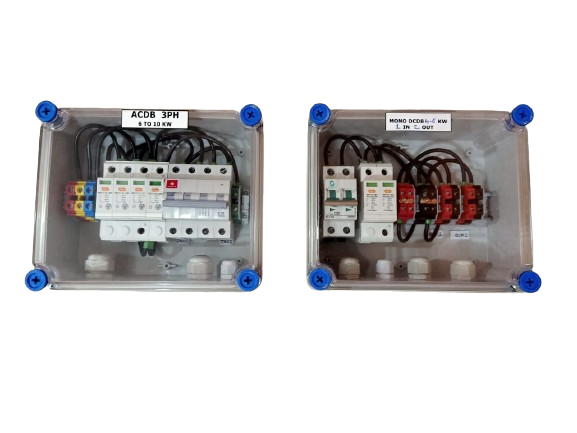

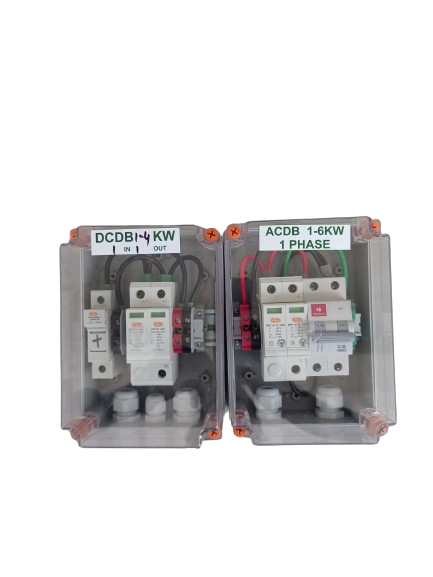

ACDB&DCDB
ACDB (Alternate Current Distribution Box) and DCDB (Direct Current Distribution Box) are essential components in solar power projects, responsible for managing the distribution of electrical power in the system. Here are brief details about each:

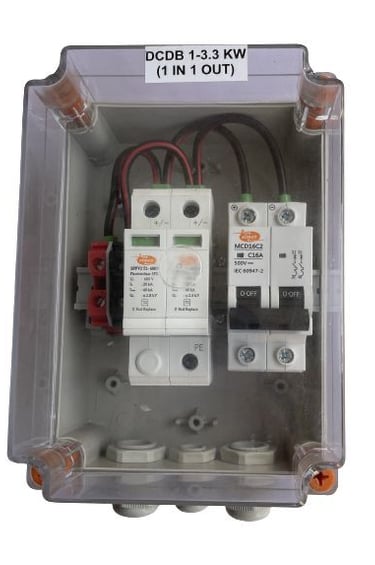

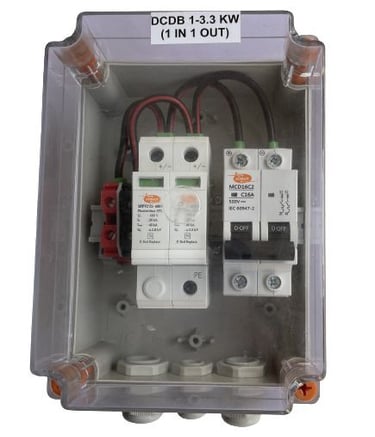

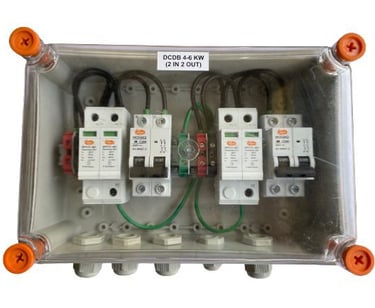

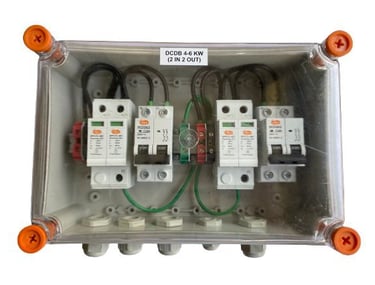

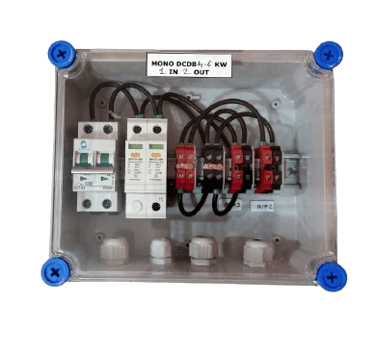

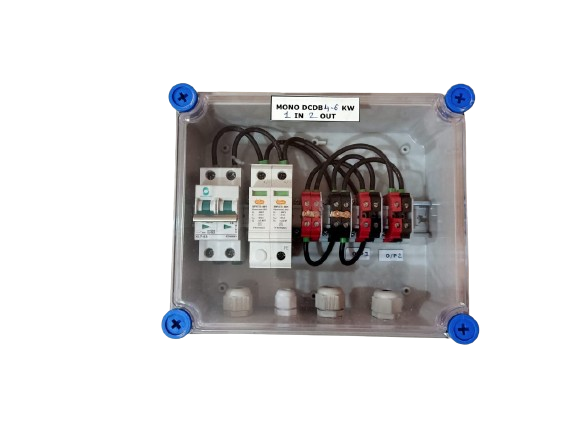

DCDB (Direct Current Distribution Box):
1. Function:
Collects direct current (DC) power generated by solar panels.
Distributes the DC power to inverters for conversion into alternating current (AC).
2. Components:
DC Disconnect Switch: Provides a means to disconnect the solar panels from the rest of the system for maintenance or emergencies.
Surge Protection Devices (SPD): Protects the system from voltage surges caused by lightning or other electrical issues.
Fuses and Circuit Breakers: Protects against overcurrent and short circuits in the DC circuit.
3. Location:
Typically positioned between the solar panels and the inverter.
4. Safety Features:
Designed with safety features to isolate the DC side during maintenance or emergencies.

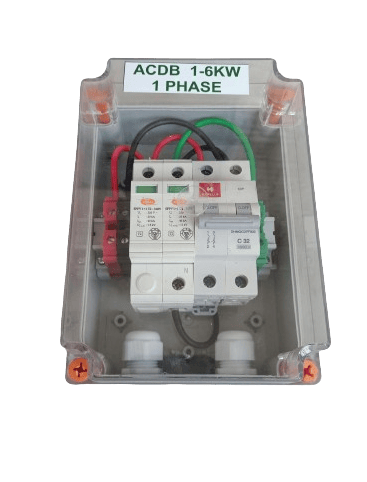

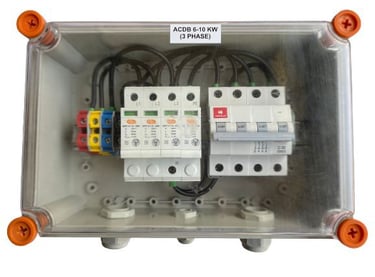

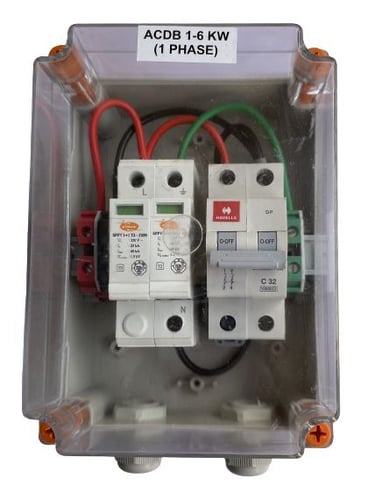

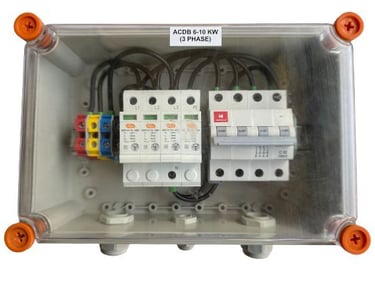

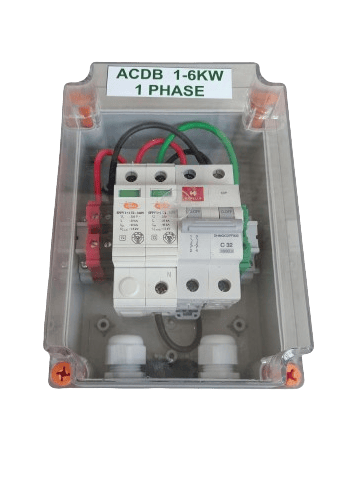

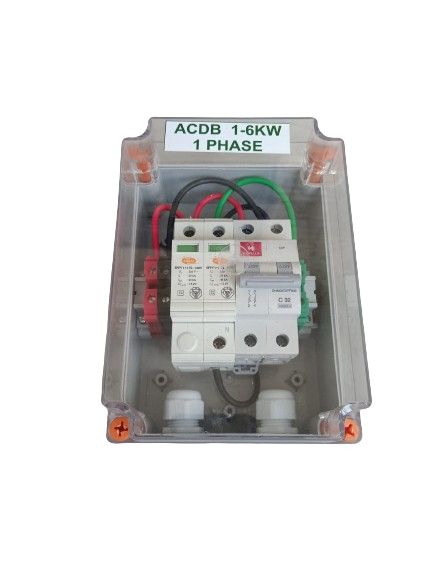

ACDB (Alternate Current Distribution Box):
1. Function:
Collects the alternating current (AC) power from the inverters.
Distributes the AC power to various loads or connects to the grid.
2. Components:
AC Disconnect Switch: Allows for isolating the inverter or the entire AC side for maintenance or emergency purposes.
Metering Equipment: Monitors and records the energy production for billing or tracking purposes.
Circuit Breakers or Fuses: Protects against overcurrent and short circuits in the AC circuit.
3. Location:
Positioned between the inverter and the loads or the grid connection point.
4. Grid Connection:
In grid-tied systems, the ACDB facilitates the connection of excess energy to the grid.
5. Monitoring and Control:
May include monitoring devices for real-time data on energy production and system performance.
Can integrate control systems for remote monitoring and management.
Integration in a Solar Project:
Design Phase:
DCDB and ACDB are integral parts of the solar project design.
Their specifications depend on the size of the solar array, inverter capacity, and project requirement
